Building an RC10, general notes and hardware (useful reference)
===================================================================

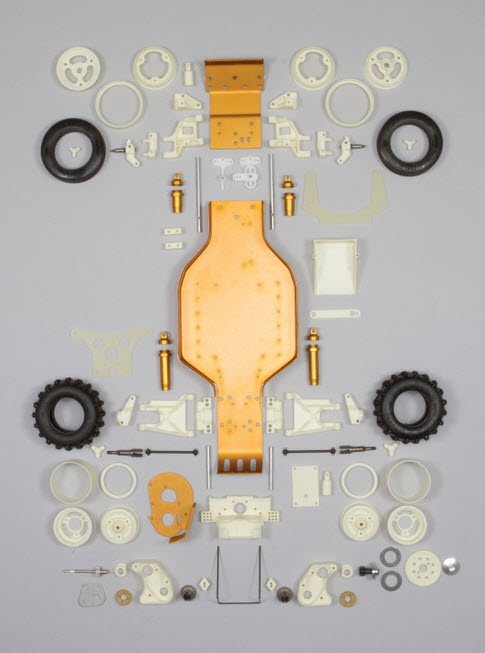

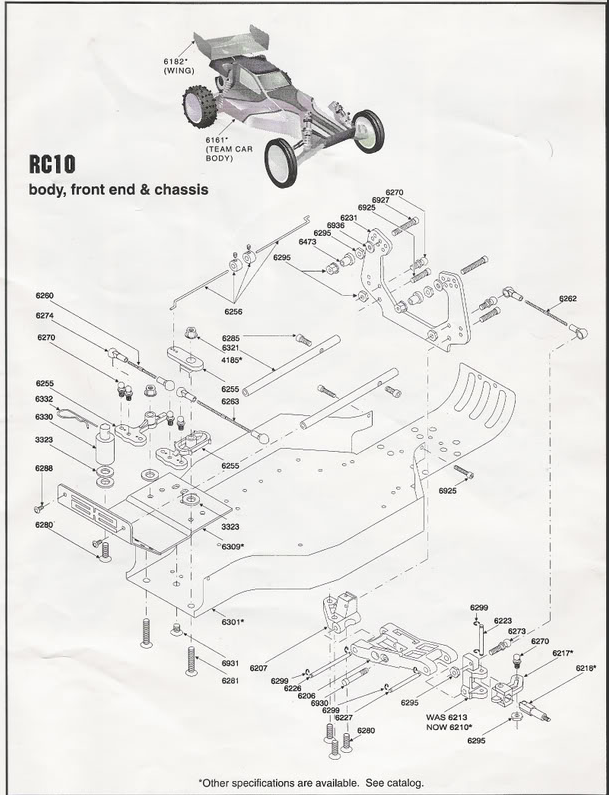

Exploded View:

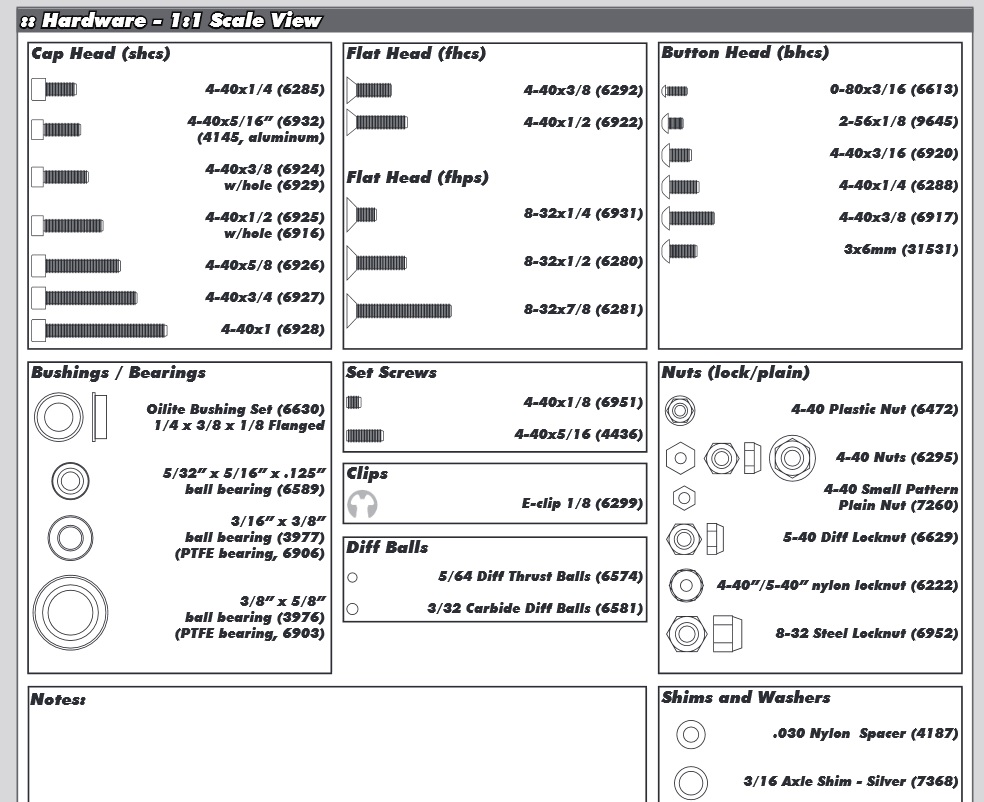

click for larger 1:1 hardware and P/N
hardware via
exploded view RC10GT, some parts in common)
General Build Notes:

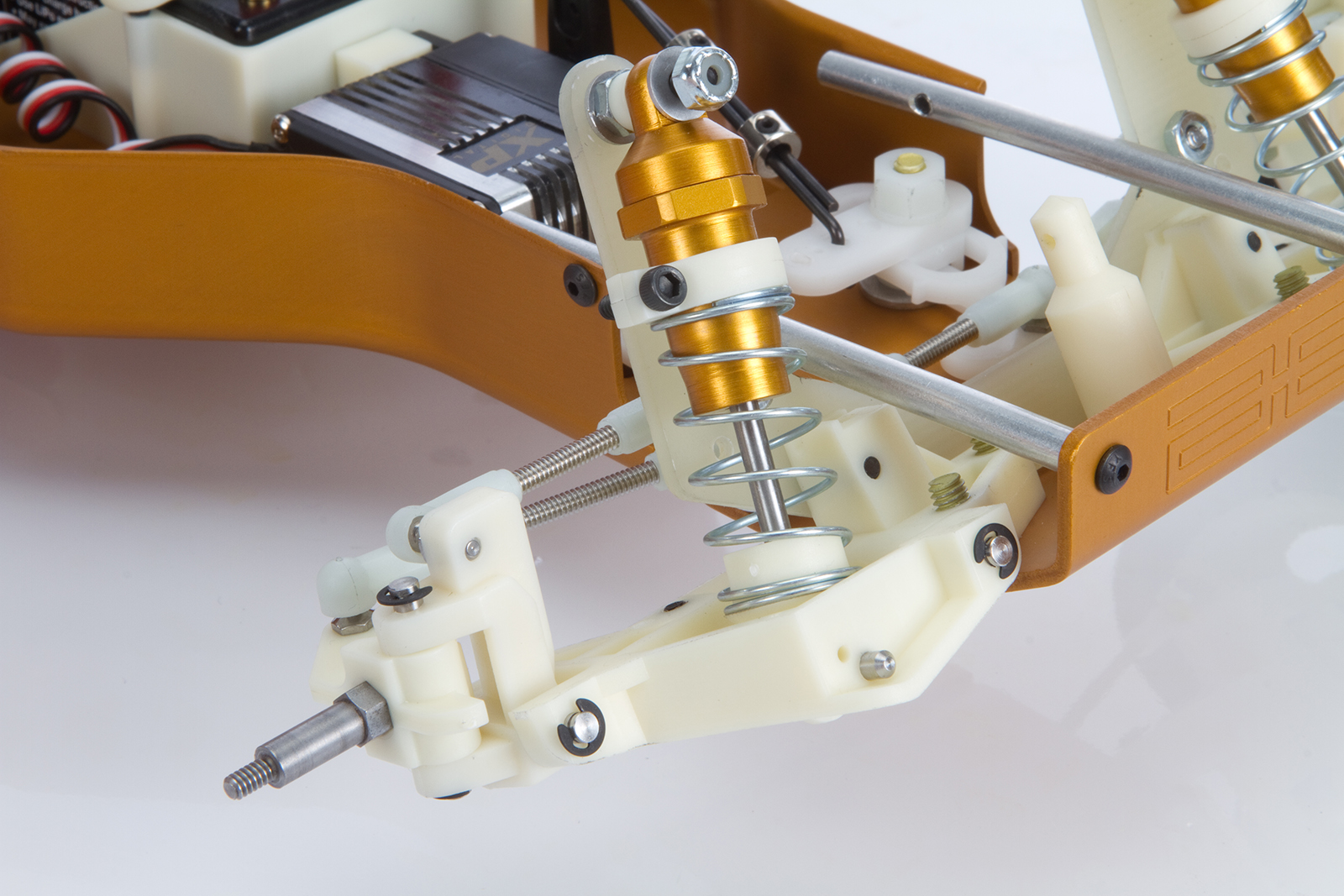

FRONT END Suspension and Steering
nose piece 6310 (6309 black)
6281 8-32" x 7/8" screws from chassis, thru nosepiece to support bellcranks,
also use #8 3323 thick washer (2 if needed) on topside
and 6931 8-32 x 1/41/4" screw to secure nosepeice to chassis
6280 8-32" x 1/2" screw for bodymount (plus 2 #8 or #10 aluminum washers)
6207 suspension mount each side uses 3X 6280
stock arms (6205) (6206 wide arms for CE/Team) use 6226 inner pin w 6299 e-clips
block carrier (6213 15 degree) gets 6273 ball ends and 6227 pin to secure to arm, w 6299 e-clips
6216 fr steering block (6217 for Team car and CE), 6219 fr axle (6218 for CE
and Team)
6295 4/40 plain hex nut to secure 6270 ball end, 6223 (use vertically) kingpin
w 6299 e-clips
6230 (6231 wider for CE and Team) shock tower, 6270 ball ends each side w 6295
4-40 nuts
6925 4-40 x 1/2" cap[ head to secure shock tower to suspension mounts
(can also install here 6927 4-40 X 3/4" allen heads to mount fr shocks upcoming)
6235 (6259/6260 for Team and CE) threaded 4-40 x 1 3/4" rods, with 6274 (6374 for Team, CE) plastic ball rod ends (make length 1.475" for classic, 2.05 for Team, CE))
qty 4 6270 ball ends for stock servo saver (6255)
4185(?) nylon nuts to secure bellcranks on top of the 6281 screws
6257, 6258, (6263 turnbuckle) threaded rods 2X are 2.025" (pair) and center link 6260 is 1.5"

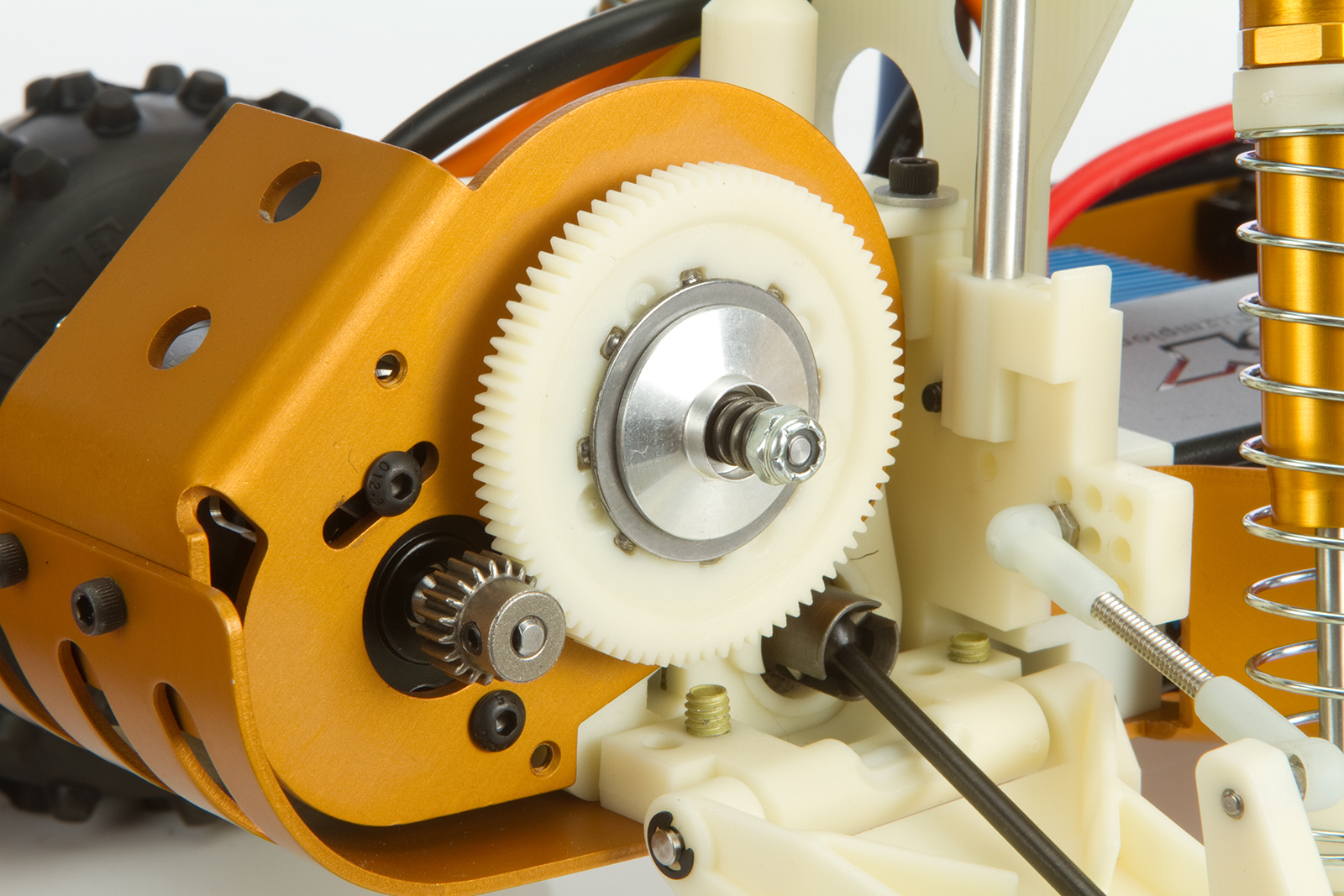

(transmission)
stealth transmission to chassisis 4-40 x 3/8
Stealth
Manual p11 to pg 23

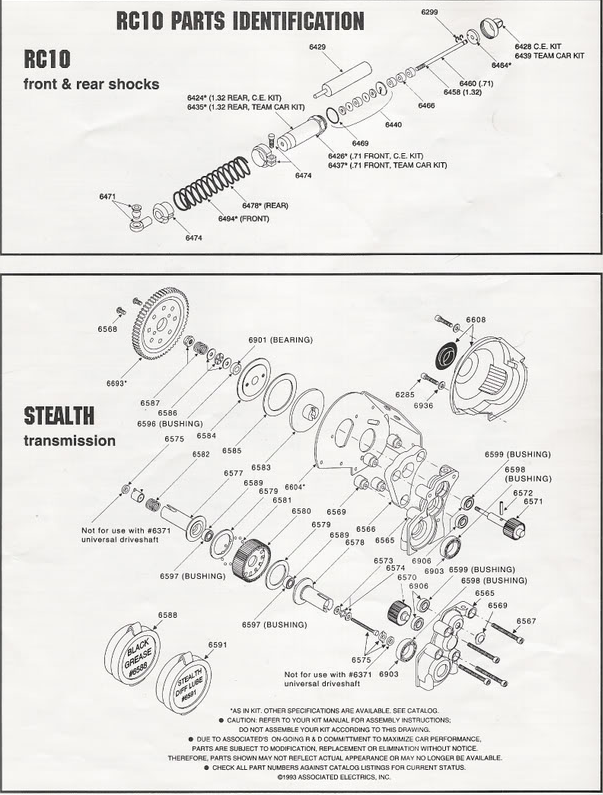

Stealth exploded
view
6323 bulkhead w 6327 wing tubes, secure bulkhead with 4-40 allen screws on
side and 6280 (8/32" x 1/2") screws from bottom
2 LONG 6273 ball ends upper inner holes of bulhead
6274 ball end cups
6288 is Ball Head cap screw 4-40 x 1/4"
XXXX is Socket Head Cap Screw 4-40 x 1/2
#4 aluminum washer
6292 is Flat Head socket screw 4-40 x 3/8"
4-40 x 5/16 ball head cap screw
#4 aluminum washer
6332 4-40 x 1/2 flat head socket screw
4-40 x 3/8 socket head cap screw with hole (for body clip to hold down batter
keeper)
4-40 x 3/8 socket head cap schew no hole for other battery keeper
secure 6 gear transmission with 4X 6280
(stealth w 4X 6292 4-40 x 3/8 socket screws)
transmission brace uses 6280 screw under for body mount, and 4x small 6932 allen screws with 6936 washers to brace transmission and bulkhead
6291 is rear guard to chassis
6285 is motor mount to rear guard
6515 metric motor screws w 6936 washer
REAR END Suspension
6360 rr suspension mounts L and R, 6355 rr arms, 6380 inner hinge pin 6299 e clips
6374 rr stub axle, into 6365 (6366 Team and CE) hub carrier using 1 cone washer and 1 flat axle (6388 cone washer only w 6387 bushings) bearings would be part 897, 6375 roll pin
6373 rear axle spacers
6273 Ball end w 6295 plain nut in the hub carrier
Team Car uses 6371 universals plus spacers as needed and 6375 roll pin
6375 slotted pin
6381 outer hinge pin w 6299 e clips
6385 threaded rods (X2) 1.6" (Team Car and CE 2.06 length (2 1/16th on 6262 threaded rods) 6274 ball ends onto 6273 ball joints
6372 spring and 6370 dogbone
(shocks)
6474 shock spring clamps
6224 fr shock pin w set screw or 6930 threaded pin
6320 nose tubes, 6288 fr screws (nose tube to nosepiece)
6378 rr shock strut attaches to bulkhead w 4 6932 4-40 x 5/16 allen screws
6927 long allen screw 4-40 x 3/4 (head to rear) w nut and washer as shock mount, then small bushing and lock nut 6295 or 4185
shock bottom; flat part of special metal ball end 6471 againts arm, then shock, then washer secured by allen screw into arm,
for team, CE version for FRONT shocks use the 3/4" screws where only 1/4 is threaded to mount lower shock thru shock balls
motor
655 metric motor screws w 6936 washer
electrics
servo (uses small allen head round head screws to attach to 6336 servo mount,
and same? for attaching mounts to chassis (use 2 washers on rear servo mount
for better alignment)
6256 linkage 1/16 piano wire) and 1/8 set screw collars w 4-40 x 1/8 set screw
6334 battery cup, 6924 cap head, 6929 cap head w hole
wheels 3 allen screws, 6863 wheel bushings (or bearings), 6296 lock nut or 6191 spinner
6902 fr bearings for 6852 fr wheels 6872 fr tires, 6822 rr tires
(front axles are 3/16 x 3/8 and rear are 1/4 x 3/8)
6390 butterfly nut to secure rr wheel onto axle
Good analysis old vs new with great pictures RCPetit via CarAction
===========================
Hardware List:
Cap Heads (all are 4-40)
1/4 = 6285
5/16 = 6932 and 4145 aluminum (shock tower to bulkhead)(tx brace to tx)
3/8 = 6924, 6929 w hole thru cap
1/2 = 6925, 6916 with hole thru cap (tx brace to tx)
5/8 = 6926
7/16 = 7873 blue alu
3/4 = 6927
1" = 6928
#4 washer = 6396
body mount washer = 3323
Flat Head Cap Screw
4-40 x 3/8 = 6292
4-40 x 1/2 = 6922
5-40 x 1/2 = 9269
Flat Head Phillips
8-32 x 1/4 = 6931
8-32 x 1/2 = 6280 (fr tx brace to secure body mount)(bulkhead mt screws)
8-32 x 7/8 = 6281
e clips; all 1/8", 6299
Button Head Cap Screw
080 x 3/16 = 6612
2-56 x 1/8 = 9645
4-40 x 3/16 =6920
2-56 x 7/32 = 9660
4-40 x 1/4 = 6288
4-40 x 3/8 = 6917 or 6861 (for rr shock mount)
3 x 6 MM = 31531
4-40/5-40 locknut for top of bellcranks = 6222, possibly 4185
4-40 plastic nut = 6472
4-40 small pattern plain nut = 72605-40 diff lock nut = 6629
4-40 nut = 6295 (shock mount) (also 4185)
8/32 steel locknut = 6952
ball studs silver short .20 = 6271
ball studs silver long .30 = 6273
ball stud cups = 6274 (rr bulkhead to rr tie rod)
rr tie rod = 6262
socket head stud balls 020 = 6726
shock rod ends = 6471
shock mount bushing = 6473
bearings w size and part number:
6589 = 5/32 x 5/16 for Stealth Diff Tube
World's
RC10 Exploded View
RC10 GT Exploded
View
RC
Handbook V2 from Heavy's Hobby Shop (ctsy Team Associated)
Some AE Catalogue Pictures:

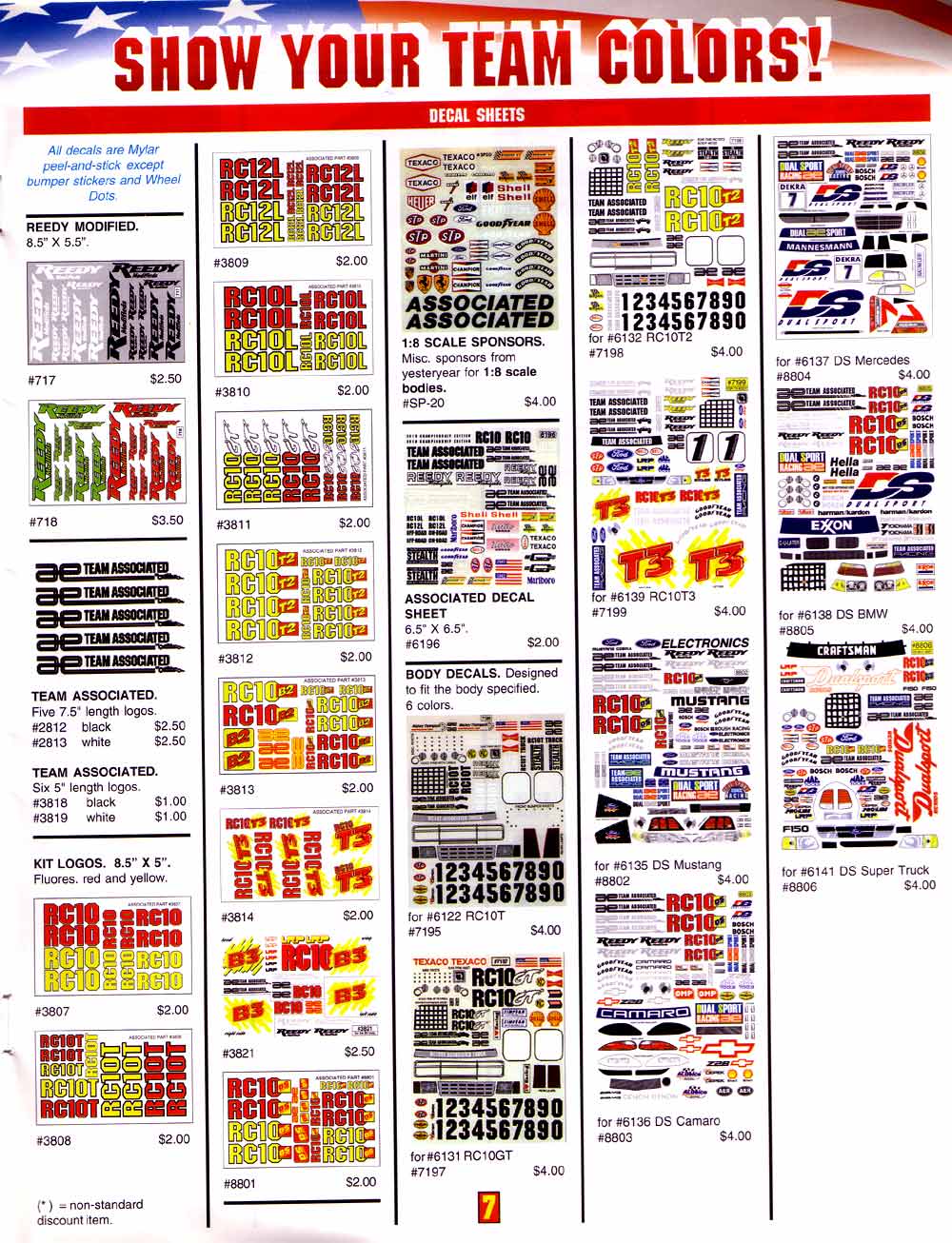

Decals

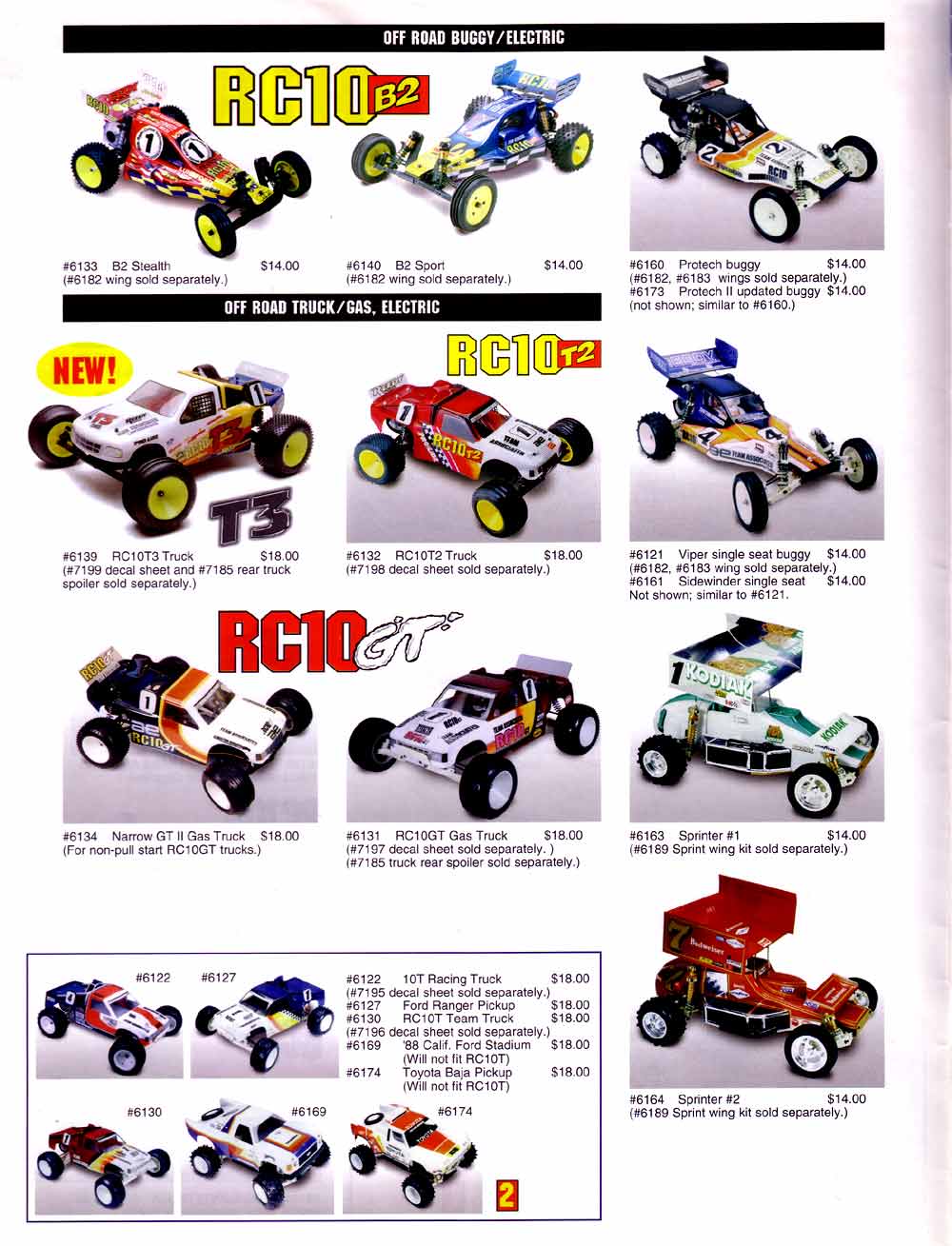

Off Road Bodies

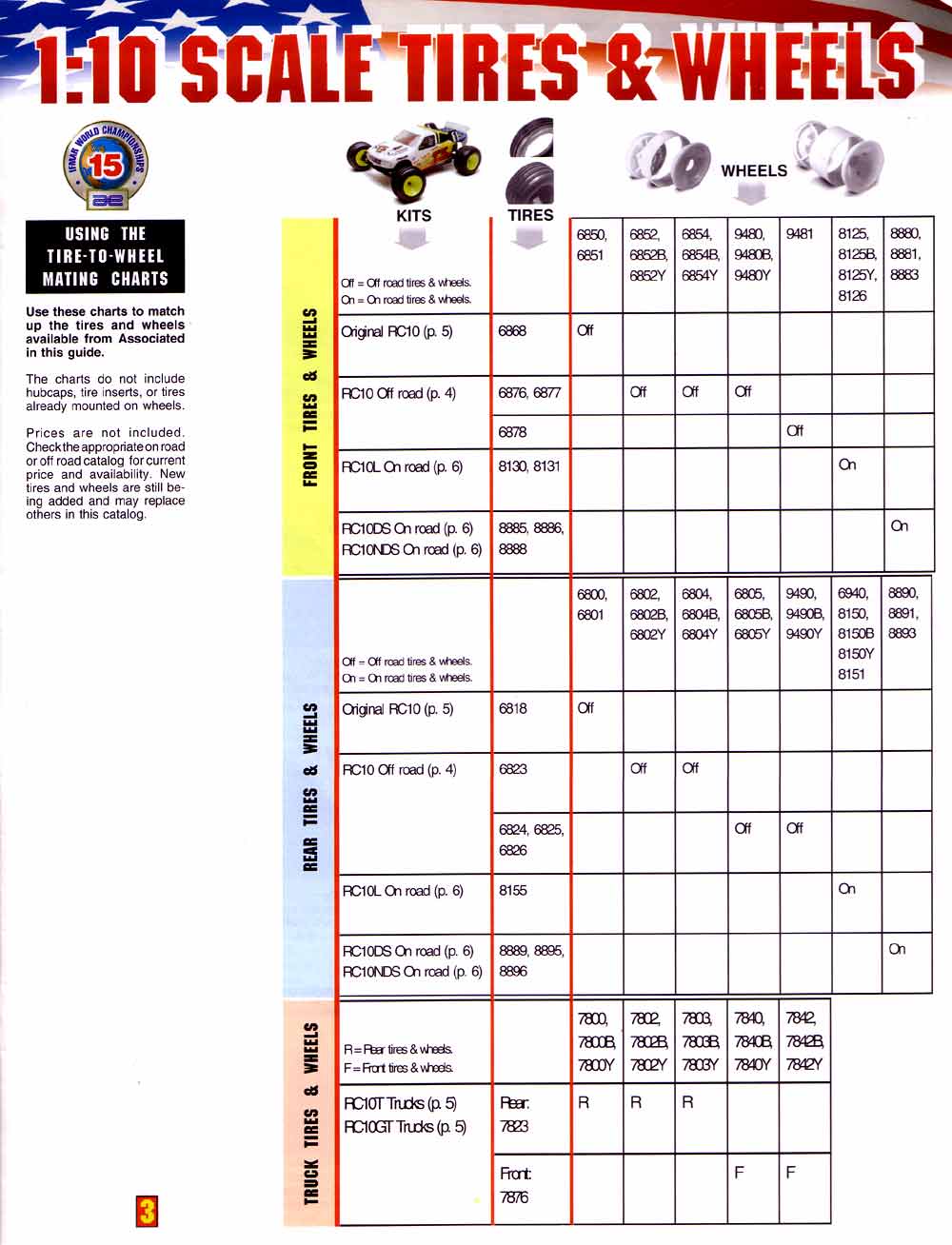

Tires

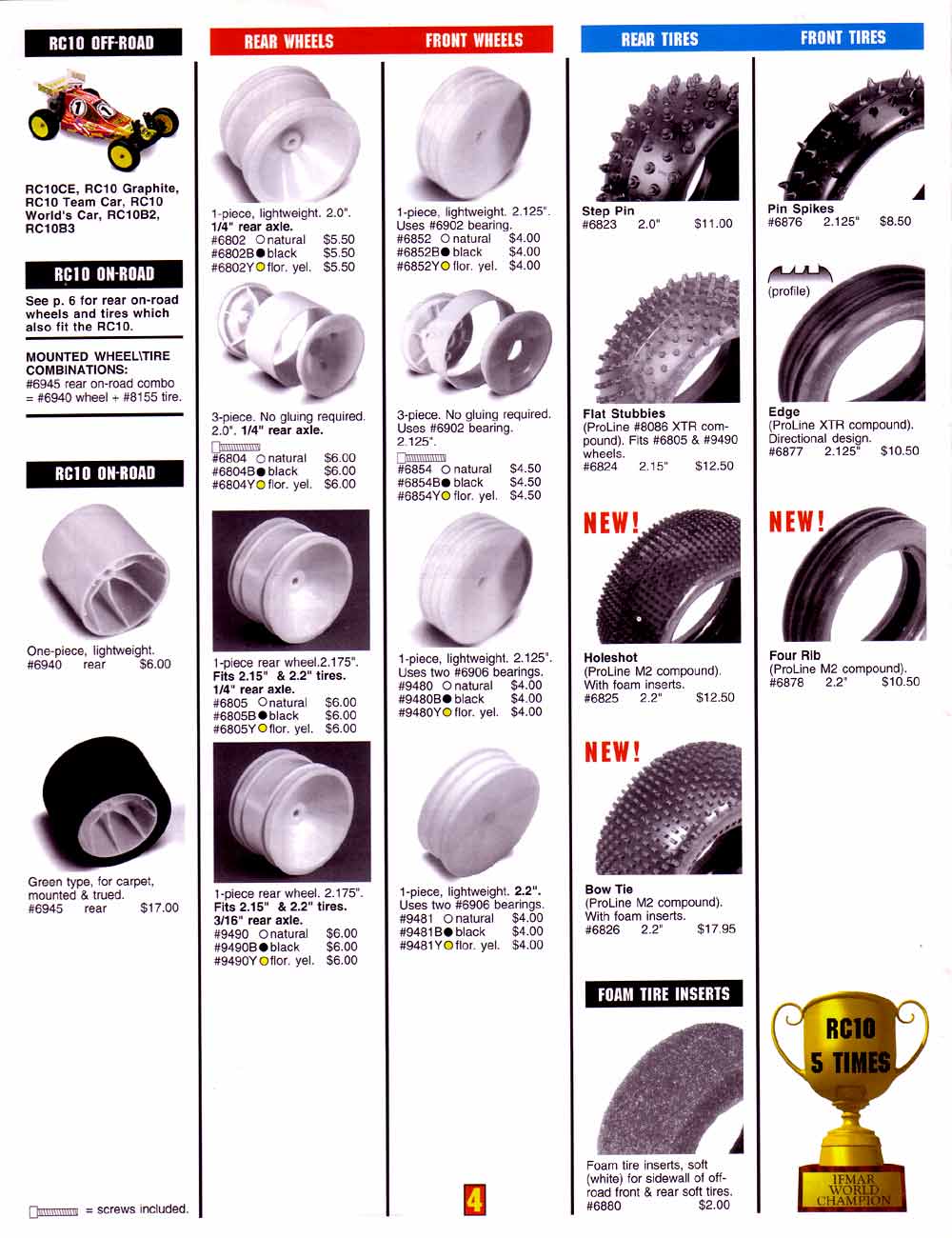

Wheels 1

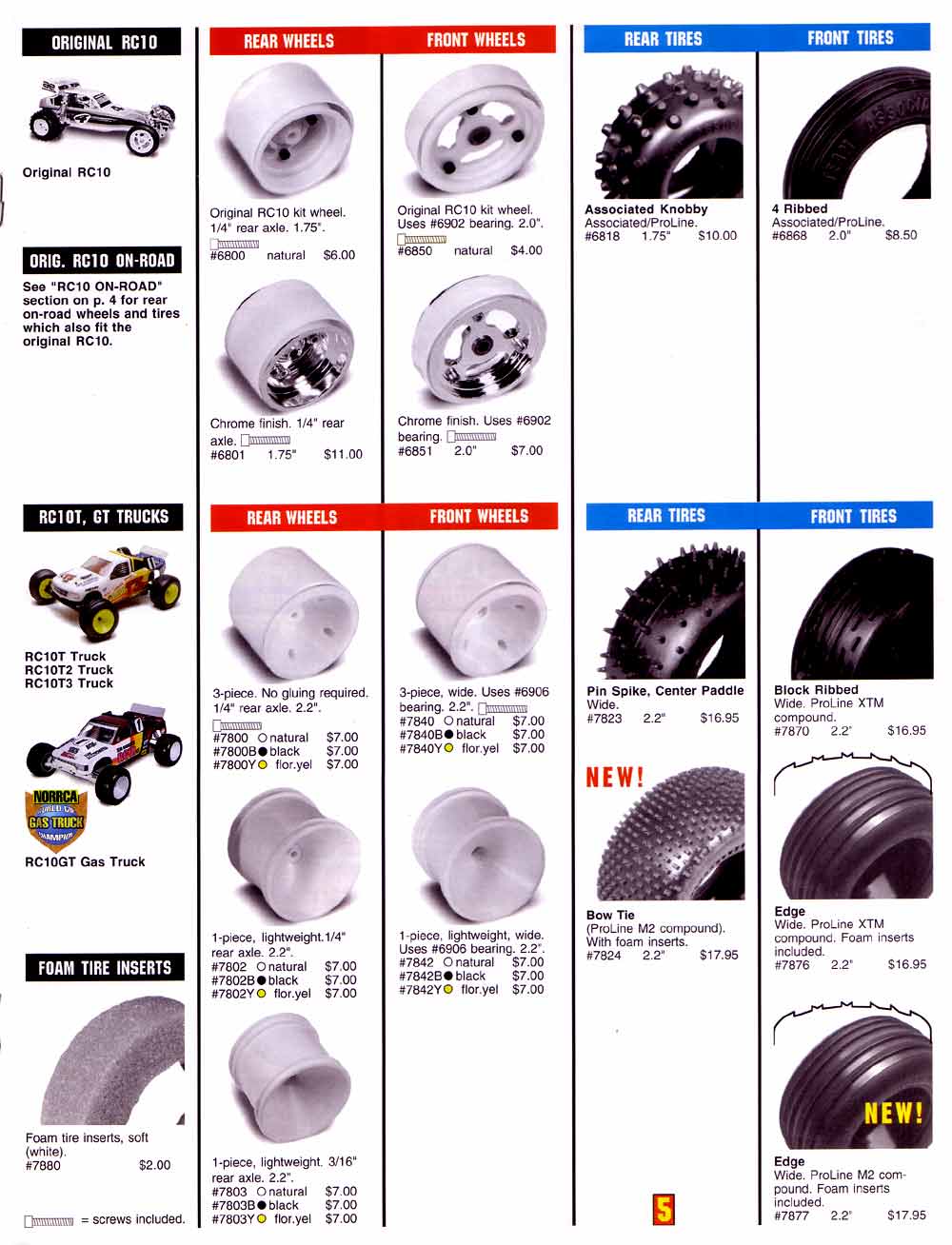

Wheels 2
RC10T info:
truck parts list:

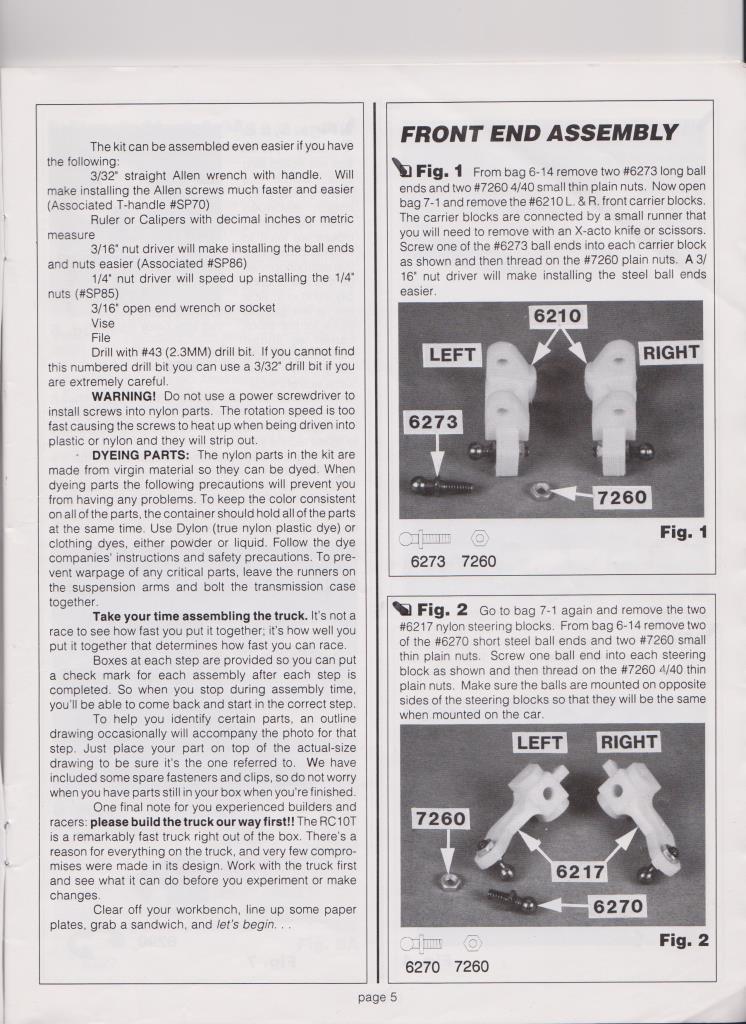

pg 5; front
end

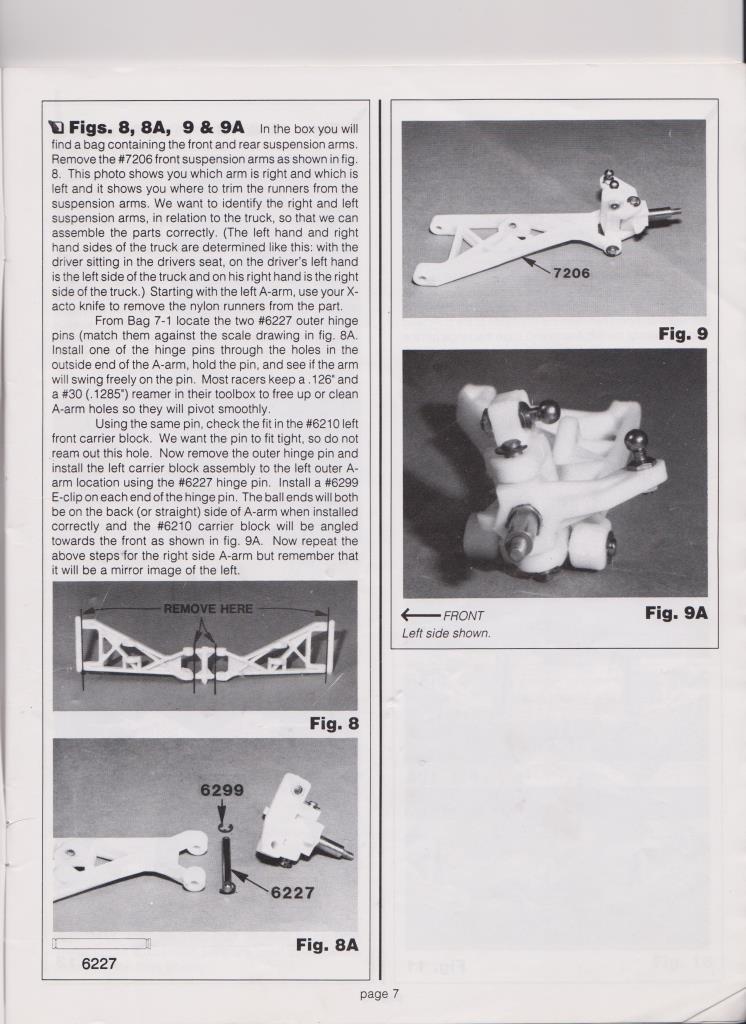

pg 7; front
end

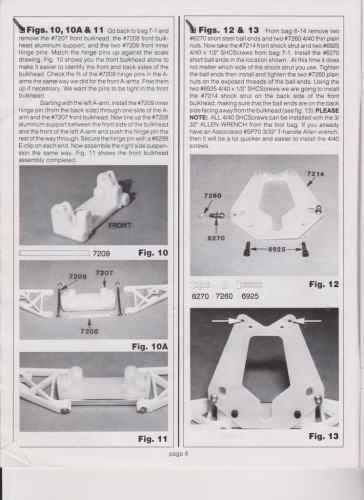

pg 8; front
end

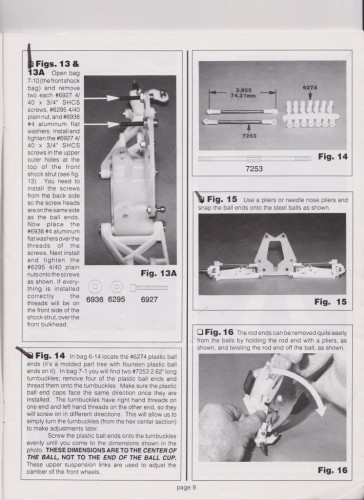

pg 9; front
end

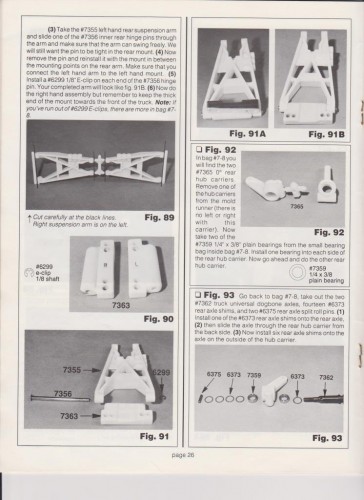

pg 26; rear
end

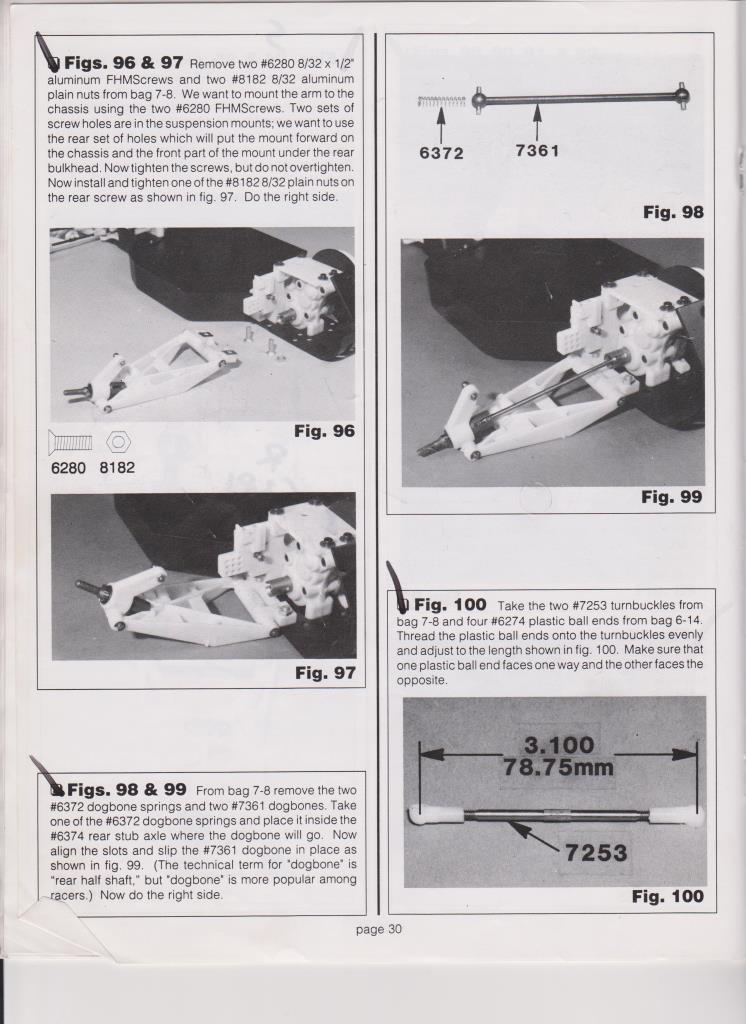

pg 30; rear
end
